How Drop Deck Tank Chassis Deliver Versatility in Conversion & Modification Projects

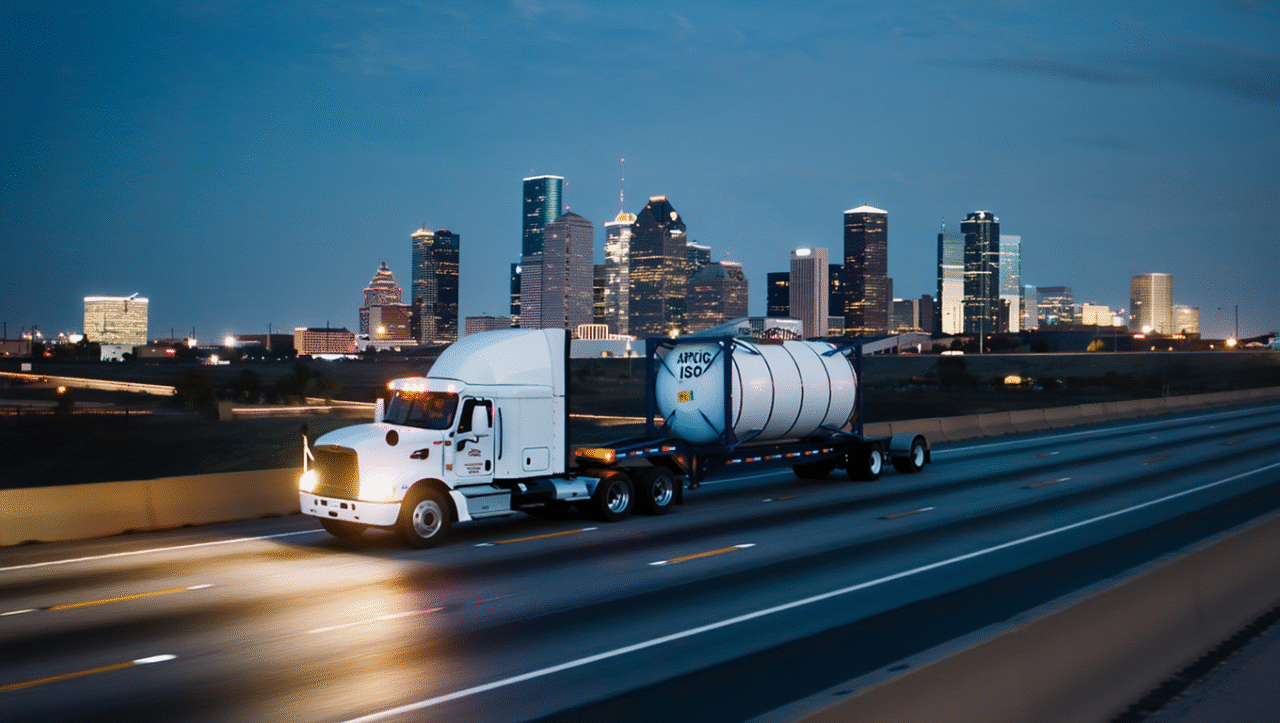

In the world of heavy transport, few trailer platforms are as adaptable as the drop deck tank chassis or ISO tank container chassis. Originally designed for transporting bulk liquid ISO tanks, these chassis offer a strong foundation for a wide range of conversion and modification jobs—bringing strength, stability, and lower cost of entry.
Case in point: these chassis typically consist of two main I-beams with welded cross-members, making for a simple, durable frame that refurbishers prize. Worn components—suspension, brakes, lighting, wheels, twist locks—can be replaced, then the chassis stripped, sandblasted, primed, and painted to near‐new standards. All Things Intermodal
Key built-in advantages include:
- Lower deck height / drop deck design, which lowers the center of gravity and improves stability, especially under shifting loads. Innova Industries+1
- Lightweight yet rugged frames that can handle heavy liquid loads while allowing room in gross vehicle weight for custom modifications. Innova Industries+1
- Standard bolsters and twist locks make it easier to mount tanks, containers, or other custom payloads without elaborate tie-downs. Innova Industries
Real Conversion Use Cases (Non-ISO Tank Container Use)

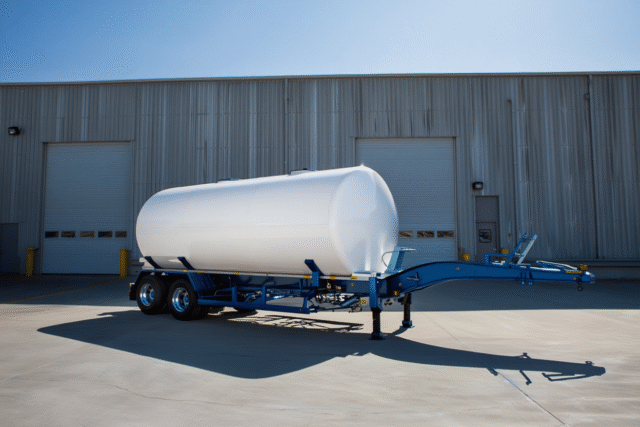

- Agitated Bulk Storage Tanks for Sealcoat: The heavy-gauge steel frame of a drop deck chassis makes an excellent foundation for mounting large storage tanks or custom agitation tanks (6,000-10,000 gallon) used in a variety of road sealant and pavement applications. The low deck height allows for safe transportation for tall or heavy tanks, while the open, rugged frame allows operators to weld on their own custom tank designs and add accessorial equipment such as pumps, mixers, or piping systems.

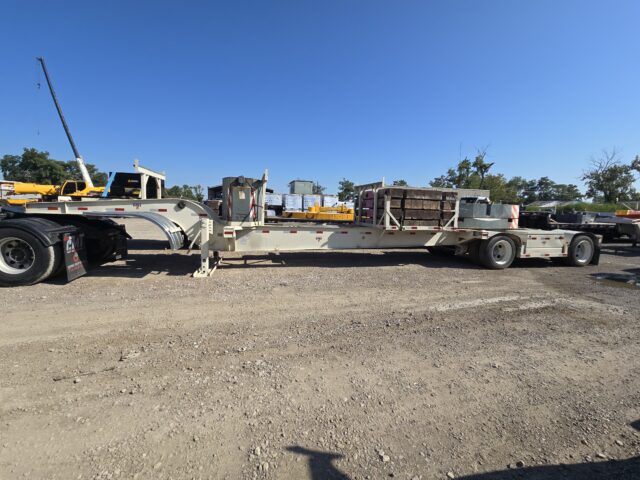

- Crane Counterweights for Industrial Construction / Rigging: Industries like heavy rigging or crane services often require heavy counterweights. A drop deck tank chassis, when modified with reinforced frames and mounting brackets, can serve as a mobile counterweight base. Because the deck is low and frame strong, these chassis make excellent platforms to carry large weights that need to be secured and transported. Innova Industries
Crane counterweights are massive slabs of steel or concrete used to balance the lifting capacity of cranes, ensuring stability and safety during heavy lifts. Because these weights are extremely dense and must be moved between job sites, a strong, stable platform is essential.
The drop deck tank chassis is an ideal candidate for this role. Its lowered deck height provides a low center of gravity, which helps manage the uneven stresses created by concentrated loads like counterweights. The heavy-gauge steel frame offers the strength needed to secure large blocks of weight, while its simple I-beam design allows for straightforward modification. Fabricators can weld on custom mounting brackets, reinforcement plates, or locking mechanisms to keep counterweights stable during transit. With these modifications, a chassis originally built for tank transport becomes a reliable mobile base for hauling the critical counterweight systems that keep cranes safe and operational.

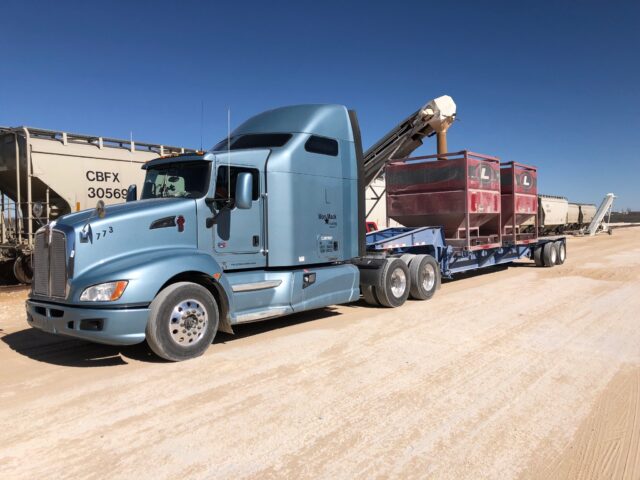

- Sand Box / Frac Sand Hauling: Another popular conversion for drop deck tank chassis is adapting them for sand box transport. This is only suited for the standard sand boxes which are 8 feet long, which means the chassis needs to be modified to support and secure them safely. This is achieved by custom fabricating two additional heavy-duty bolsters, each fitted with twist locks at the ends. The twist locks allow sand boxes to be secured quickly and safely, minimizing loading time while ensuring stability on the road.
Because the chassis was originally designed for tanks, this conversion requires precise measuring and careful planning to ensure proper weight distribution. It also demands a highly skilled welder to fabricate and install the bolsters with the necessary strength and accuracy. When done correctly, the result is a chassis that can safely and efficiently haul sand boxes in even the toughest operating environments.
These custom modifications convert a chassis meant for liquid loads into one suited for heavy, shifting bulk solids while retaining stability and road compliance. All Things Intermodal+1
Why It Matters
For companies considering investment in specialized transport equipment and need an alternative to expensive, new custom trailers or conversion work, drop deck tank chassis offer a high return on versatility. You start with a strong, proven base. With modifications—whether for bulk sealcoat tanks, counterweights, sand boxes etc.—you get multi-use equipment rather than single-purpose trailers. That means better utilization, lower lifecycle cost, and more flexibility to pivot as your business needs evolve.
If anyone is exploring a conversion project—or wants advice on selecting / modifying a drop deck chassis for a specific use—happy to chat!
